Banting Harga Xl6009 Dc-dc 3.8-32v To 1.3-35v Auto Boost Buck Converter Module Adjustable Step Up Step Down Module Solar Voltage Board 3QLeX35ia7KApD6
Banting Harga Perlengkapan di Kabupaten Morowali Utara Xl6009 Dc-dc 3.8-32v To 1.3-35v Auto Boost Buck Converter Module Adjustable Step Up Step Down Module Solar Voltage Board dari Electronics Enthusiast Luar Negeri

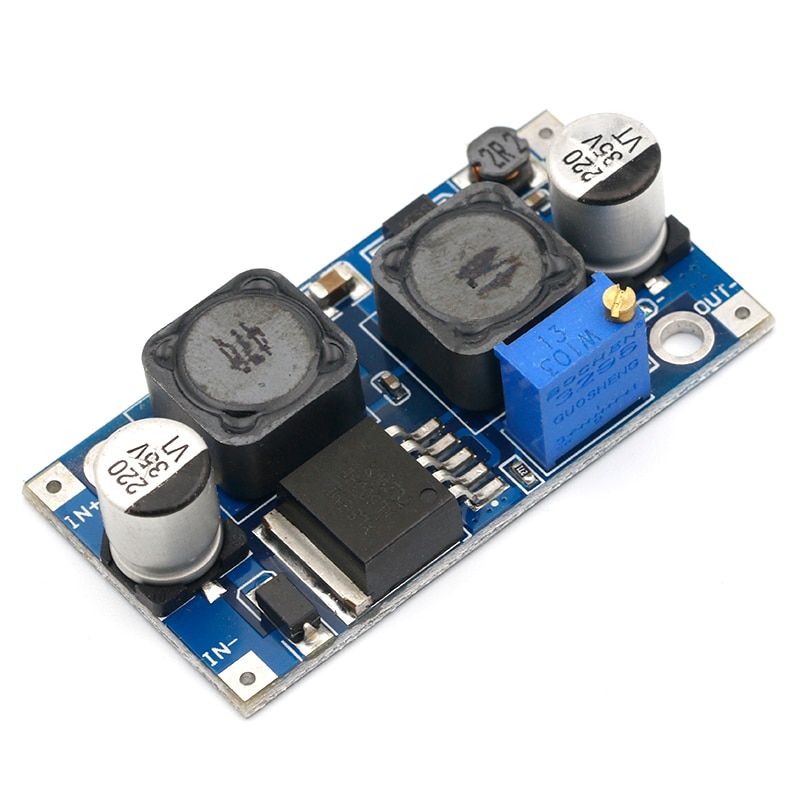

Name: Xl6009 Dc-dc 3.8-32v To 1.3-35v Auto Boost Buck Converter Module Adjustable Step Up Step Down Module Solar Voltage Board
SKU: 8722251960
Rated 4.5/5
based on 2 Reviews
Electronics Enthusiast
Harga :Rp.25.846 In stock
XL6009 400KHz 4A switch current boost moduleBaby description:When the car starts, the voltage will be lowered to below 7V or less, and the voltage of the engine at high speeds is as high as 15V or higher. It is difficult for electrical appliances working at 12V to work properly. This automatic buck-boost module solves this problem. No matter the input voltage is 5V, 12V or 32V, the output can be stabilized at 12V. Ultra-wide input voltage 5V ~ 32V; Ultra-wide output voltage 1.25V ~ 35V (with automatic buck-boost, within the working range, any voltage input can regulate any voltage output); Built-in 4A high-efficiency MOSFET switch tube, making the efficiency Z up to 94%; (LM2577 current is only 3A) Ultra-high switching frequency 400KHz, the ripple is smaller and the volume is smaller. (LM2577 frequency is only 50KHz)Application areas:Automotive voltage stabilization, solar photovoltaic power generation, wind power generation and other voltage unstable applications.Technical Parameters:Model specifications: DSN6000AUD automatic buck-boost moduleModule nature: non-isolated boost (BOOST)Rectification method: non-synchronous rectificationInput range: 3.8V ~ 32VOutput range: 1.25V ~ 35VInput current: 3A (maximum), no load 18mA (5V input, 8V output, no load is less than 18mA. The higher the voltage, the greater the no load current.)Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)Switching frequency: 400KHzOutput ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)Load adjustment rate: 0.5%Voltage adjustment rate: 0.5%Working temperature: -40 +8451; ~ + 85 +8451;Dimensions: 48mm * 25mm * 14mm (length * width * he
Tahukah Saudara segala sesuatu yang sedang ramai saat itu? Anda tentu medapati semua Perlengkapan dengan online. Kamu bisa membeli Xl6009 Dc-dc 3.8-32v To 1.3-35v Auto Boost Buck Converter Module Adjustable Step Up Step Down Module Solar Voltage Board secara online, dan mengirimkannya segera ke rumah Kalian. Tidak sedikit toko online terlebih lagi menawarkan pengiriman gratis di Indonesia. Hal berarti untuk diingat saat berbelanja lewat online ialah tetap berprinsip terbuka dan tidak sedikit ruang yang ada di tangan Anda. Electronics Enthusiast memiliki lebih banyak varian dibanding toko Perlengkapan offline Anda. Jikalau Ente ingin menyesuaikan waktu, selalu berpegang di produk yang benar-benar Awak butuhkan serta tinggalkan penjelajahan random untuk lain waktu.
Customer reviews:
liubang3
SiCepat
Date: Sun Apr 18 2021Kota: Bukittinggi
Kualitas product baik product original harga product baik kecepatan pengiriman baik
i*****r
Wahana
Date: Mon Apr 26 2021Kota: Serang

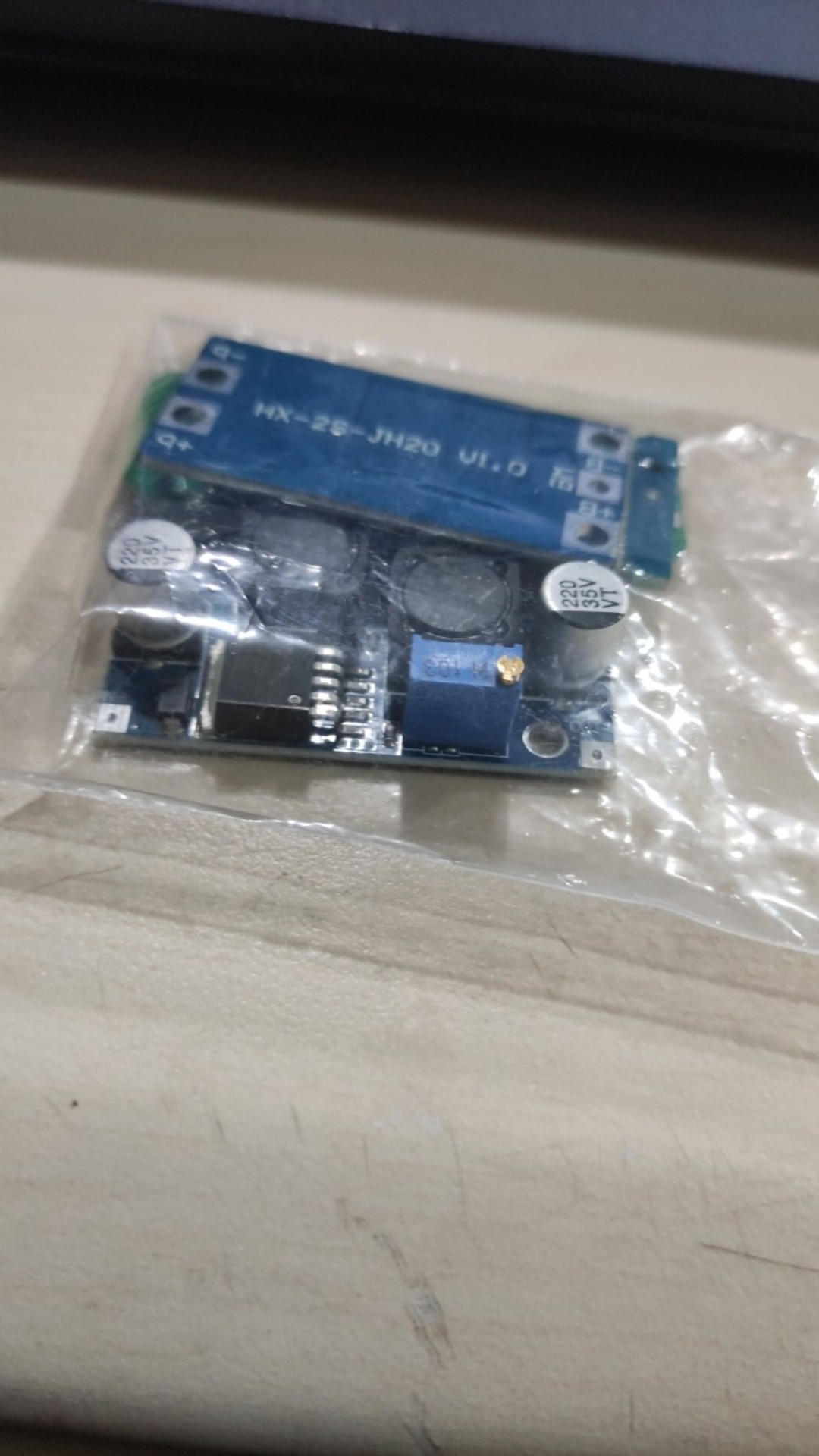

Bagus & sesuai ama foto yang dipajang . Besok order Xl6009 Dc-dc 3.8-32v To 1.3-35v Auto Boost Buck Converter Module Adjustable Step Up Step Down Module Solar Voltage Board lagi nanti pas ada duit .
